WISOL LSM110A RUNNING TINYGO IDE GOLANG - LoRaWAN

                                     WISOL LSM110A  RUNNING TINYGO IDE GOLANG - LoRaWAN


The purpose of this BLOG is to demonstrate how it is possible to program the WISOL LSM110A module (STM32WL55) with the TinyGo language, Breakout was used for LSM110A.

BETA BETA BETA BETA

A communication with LoRaWAN server ChirpStack and TTTN will be performed (OTAA, AU915), a Hello TinyGo #XX text will be sent every 60 seconds (FUP), the #XX is a counter.

Requires your knowledge of Go/TinyGo

Follow discussion at



LSM110A Starter KIT

Módulo

Breakout

What is TTN

The Network of Things (TTN) is an initiative initiated by Dutch civil society. The goal is to have LoRaWAN networks installed in every city in the world. By interconnecting these local networks, TTN wants to build a worldwide infrastructure to facilitate a public Internet of Things (IoT).

The best LoRaWAN provider.
TinyGO

TinyGo is a project to bring the Go programming language to microcontrollers and modern browsers by creating a new LLVM-based compiler.

You can compile and run TinyGo programs on many different microcontroller boards, such as the BBC micro:bit and the Arduino Uno.

TinyGo can also be used to produce WebAssembly (WASM) code, which is very compact in size.

Just want to see the code? Go to the Github repository at

https://github.com/tinygo-org/tinygo

TinyGo also supports many different devices such as accelerometers and magnetometers. Check out the Github repository at

https://github.com/tinygo-org/drivers for more information.

Attention:

c:\go\bin\go get tinygo.org/x/drivers

LoRaWAN

go.mod

module demo
go 1.19 require tinygo.org/x/drivers v0.23.0 // indirect




main.go
// Simple code for connecting to Lorawan network and uploading sample payload
package main

import (
    "errors"
    "strconv"
    "time"

    "tinygo.org/x/drivers/examples/lora/lorawan/common"
    "tinygo.org/x/drivers/lora"
    "tinygo.org/x/drivers/lora/lorawan"
    "tinygo.org/x/drivers/lora/lorawan/region"
)

var debug string

const (
    LORAWAN_JOIN_TIMEOUT_SEC    = 180
    LORAWAN_RECONNECT_DELAY_SEC = 15
    LORAWAN_UPLINK_DELAY_SEC    = 60
)

var (
    radio   lora.Radio
    session *lorawan.Session
    otaa    *lorawan.Otaa
)

func loraConnect() error {
    start := time.Now()
    var err error
    for time.Since(start) < LORAWAN_JOIN_TIMEOUT_SEC*time.Second {
        println("Trying to join network")
        err = lorawan.Join(otaa, session)
        if err == nil {
            println("Connected to network !")
            return nil
        }
        println("Join error:", err, "retrying in", LORAWAN_RECONNECT_DELAY_SEC, "sec")
        time.Sleep(time.Second * LORAWAN_RECONNECT_DELAY_SEC)
    }

    err = errors.New("Unable to join Lorawan network")
    println(err.Error())
    return err
}

func failMessage(err error) {
    println("FATAL:", err)
    for {
    }
}

func main() {
    println("*** Lorawan basic join and uplink demo ***")

    // Board specific Lorawan initialization
    var err error
    radio, err = common.SetupLora()
    if err != nil {
        failMessage(err)
    }

    // Required for LoraWan operations
    session = &lorawan.Session{}
    otaa = &lorawan.Otaa{}

    // Connect the lorawan with the Lora Radio device.
    lorawan.UseRadio(radio)

    lorawan.UseRegionSettings(region.AU915())

    // Configure AppEUI, DevEUI, APPKey, and public/private Lorawan Network
    setLorawanKeys()

    if debug != "" {
        println("main: Network joined")
        println("main: DevEui, " + otaa.GetDevEUI())
        println("main: AppEui, " + otaa.GetAppEUI())
        println("main: DevAddr, " + otaa.GetAppKey())
    }

    // Try to connect Lorawan network
    if err := loraConnect(); err != nil {
        failMessage(err)
    }

    if debug != "" {
        println("main: NetID, " + otaa.GetNetID())
        println("main: NwkSKey, " + session.GetNwkSKey())
        println("main: AppSKey, " + session.GetAppSKey())
        println("main: Done")
    }
    // Try to periodicaly send an uplink sample message
    upCount := 1
    for {
        payload := "Hello TinyGo #" + strconv.Itoa(upCount)

        if err := lorawan.SendUplink([]byte(payload), session); err != nil {
            println("Uplink error:", err)
        } else {
            println("Uplink success, msg=", payload)
        }

        println("Sleeping for", LORAWAN_UPLINK_DELAY_SEC, "sec")
        time.Sleep(time.Second * LORAWAN_UPLINK_DELAY_SEC)
        upCount++
    }
}
Copy and past

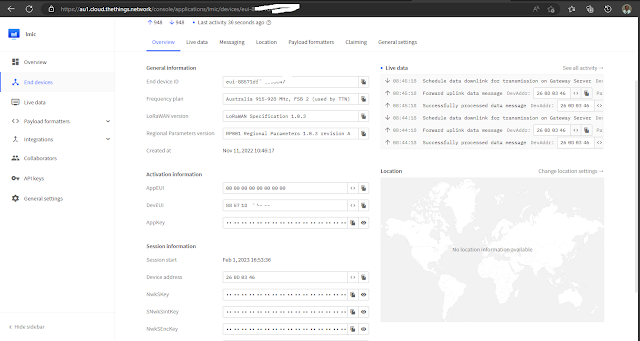

TTN CREDENTIALS


keys-default.go



//go:build !customkeys

package main

import (
    "tinygo.org/x/drivers/lora/lorawan"
)

// These are sample keys, so the example builds
// Either change here, or create a new go file and use customkeys build tag
func setLorawanKeys() {
    otaa.SetAppEUI([]uint8{0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00})
    otaa.SetDevEUI([]uint8{0x88, 0x57, 0x1D, 0xFF, 0xFE, 0xEE, 0x8C, 0x47})
    otaa.SetAppKey([]uint8{0x46, 0x28, 0xCB, 0xB6, 0x4F, 0xF9, 0x4B, 0xA5, 0xB0, 0x04, 0xE2, 0xDC, 0x01, 0x9A, 0x89, 0xA2})
    lorawan.SetPublicNetwork(true)

}






AU915 Frequencies

au915.go
package region

import "tinygo.org/x/drivers/lora"

const (
    AU915_DEFAULT_PREAMBLE_LEN = 8
    AU915_DEFAULT_TX_POWER_DBM = 20
)

type RegionSettingsAU915 struct {
    joinRequestChannel *Channel
    joinAcceptChannel  *Channel
    uplinkChannel      *Channel
}

func AU915() *RegionSettingsAU915 {
    return &RegionSettingsAU915{
        joinRequestChannel: &Channel{lora.MHz_916_8,
            lora.Bandwidth_125_0,
            lora.SpreadingFactor9,
            lora.CodingRate4_5,
            AU915_DEFAULT_PREAMBLE_LEN,
            AU915_DEFAULT_TX_POWER_DBM},
        joinAcceptChannel: &Channel{lora.MHz_923_3,
            lora.Bandwidth_500_0,
            lora.SpreadingFactor9,
            lora.CodingRate4_5,
            AU915_DEFAULT_PREAMBLE_LEN,
            AU915_DEFAULT_TX_POWER_DBM},
        uplinkChannel: &Channel{lora.MHz_916_8,
            lora.Bandwidth_125_0,
            lora.SpreadingFactor9,
            lora.CodingRate4_5,
            AU915_DEFAULT_PREAMBLE_LEN,
            AU915_DEFAULT_TX_POWER_DBM},
    }
}

func (r *RegionSettingsAU915) JoinRequestChannel() *Channel {
    return r.joinRequestChannel
}

func (r *RegionSettingsAU915) JoinAcceptChannel() *Channel {
    return r.joinAcceptChannel
}

func (r *RegionSettingsAU915) UplinkChannel() *Channel {
    return r.uplinkChannel
}






































Compile and transfer


Connection

Ainda portando para AU915

Success




FOLLOW BIG DISCUSSION


TTN WORKSHOP



Questions: forums

Thanks to the
@deadprogram
@ofauchon

and Thanks too the

Ótima IDE para Go que aceita Plug in TinyGo

Release TinyGo


Or you can do the build





Road Map

  1. Clone the repository and checkout the feature branch
$ cd /tmp
$ git clone https://github.com/ofauchon/tinygo-drivers.git
$ cd tinygo-drivers
$ git checkout lorawan-regional-parameters
$ cd examples/lora/lorawan/basic-demo
  1. Tell go/tinygo you want to use this local repository as tinygo-driver sources:
$ cd examples/lora/lorawan/basic-demo
$ go mod init demo
$ edit  go.mod and add the following line after "module demo"
replace tinygo.org/x/drivers => /tmp/tinygo-drivers
$ go mod tidy
  1. Update with your Lorawan Keys
$ vim keys-default.go
  1. Build or Flash your device
$ tinygo build -target=lorae5
$ tinygo flash -target=lorae5

Update

$ git pull
$ git checkout lorawan-cleanup

DRIVERS
